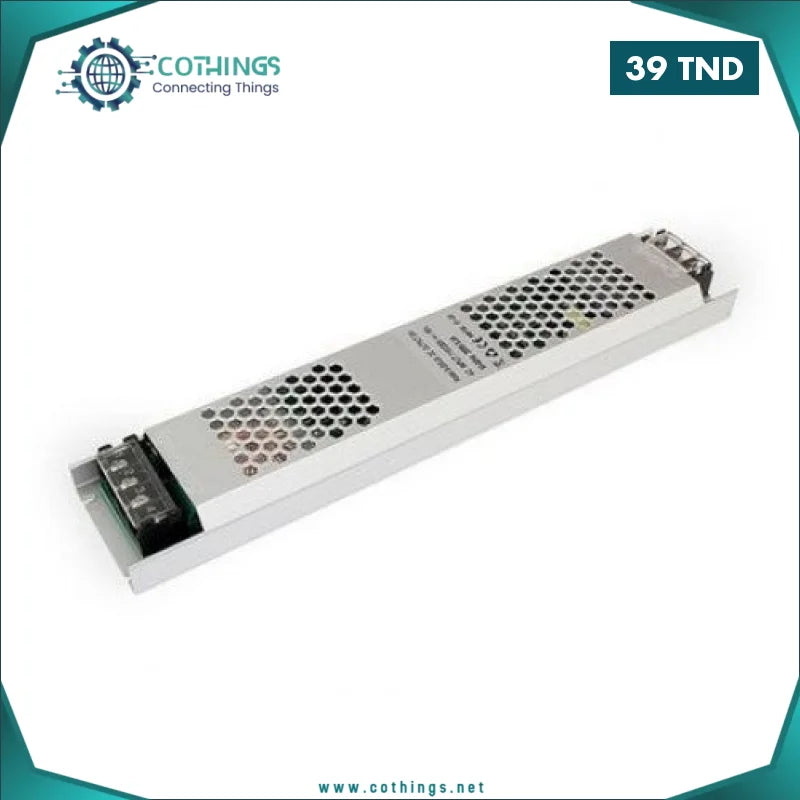

Alimentation Led SLIM 12V 30A 360w
Plus d'infos ?
Ce produit est proposé par un site partenaire externe. En poursuivant, vous quitterez Shopini.
Livraison 24–48h
Paiement sécurisé
Description
MODEL | SL-360-12 | |
| OUTPUT | DC VOLTAGE | 12V |
| RATED CURRENT | 30A | |
| CURRENT RANGE | 0 ~ 30A | |
| RATED POWER | 360W | |
| RIPPLE & NOISE (max.) Note.2 | 120mVp-p | |
| VOLTAGE ADJ. RANGE | 5% | |
| VOLTAGE TOLERANCE Note.3 | ±3.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE TIME | 2500ms, 50ms/230VAC | |
| HOLD UP TIME (Typ.) | 20ms/230VAC | |
| INPUT | VOLTAGE RANGE | 90 ~ 132VAC / 176 ~ 264VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 88% | |
| AC CURRENT (Typ.) | 1.2A/230VAC 0.6A/230VAC | |
| INRUSH CURRENT(Typ.) | 50A/230VAC | |
| LEAKAGE CURRENT | <2mA / 240VAC | |
| PROTECTION | OVER LOAD | 105 ~ 140% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 115%-135% Cut Off the Output,Auto-recovery | |
| Protection type :Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER TEMPERATURE | Shut down O/P voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | -20 ~ +60°C (Refer to derating curve) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85°C , 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/°C (0~50°C) | |
| VIBRATION | 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY | SAFETY STANDARDS | U60950-1 approved |
| WITHSTAND VOLTAGE Note 6 | I/P-O/P:3.0KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | |
| OTHERS | MTBF | 235K hrs min. MIL-HDBK-217F (25°C ) |
| DIMENSION | 338*53*21mm (L*W*H) | |
| PACKING | 0.45Kg; 50pcs/ctn | |
